A folding gate must be designed around its leaves, hinges, travel path, structure, controls and safety devices—not selected by opening width alone. By the end, you will know what to record at the site, what to demand in a quotation, how commissioning should be tested, and when this arrangement is unsuitable.
Key takeaways
- Measure opening width, clear parking space, slope, drainage and power-route length.
- Confirm folded parking space before approving a gate layout.
- Require safety edges, photocells, manual release and documented commissioning tests.
- Schedule guide, hinge, wheel and sensor checks before faults stop access.
How the leaves fold, slide and park

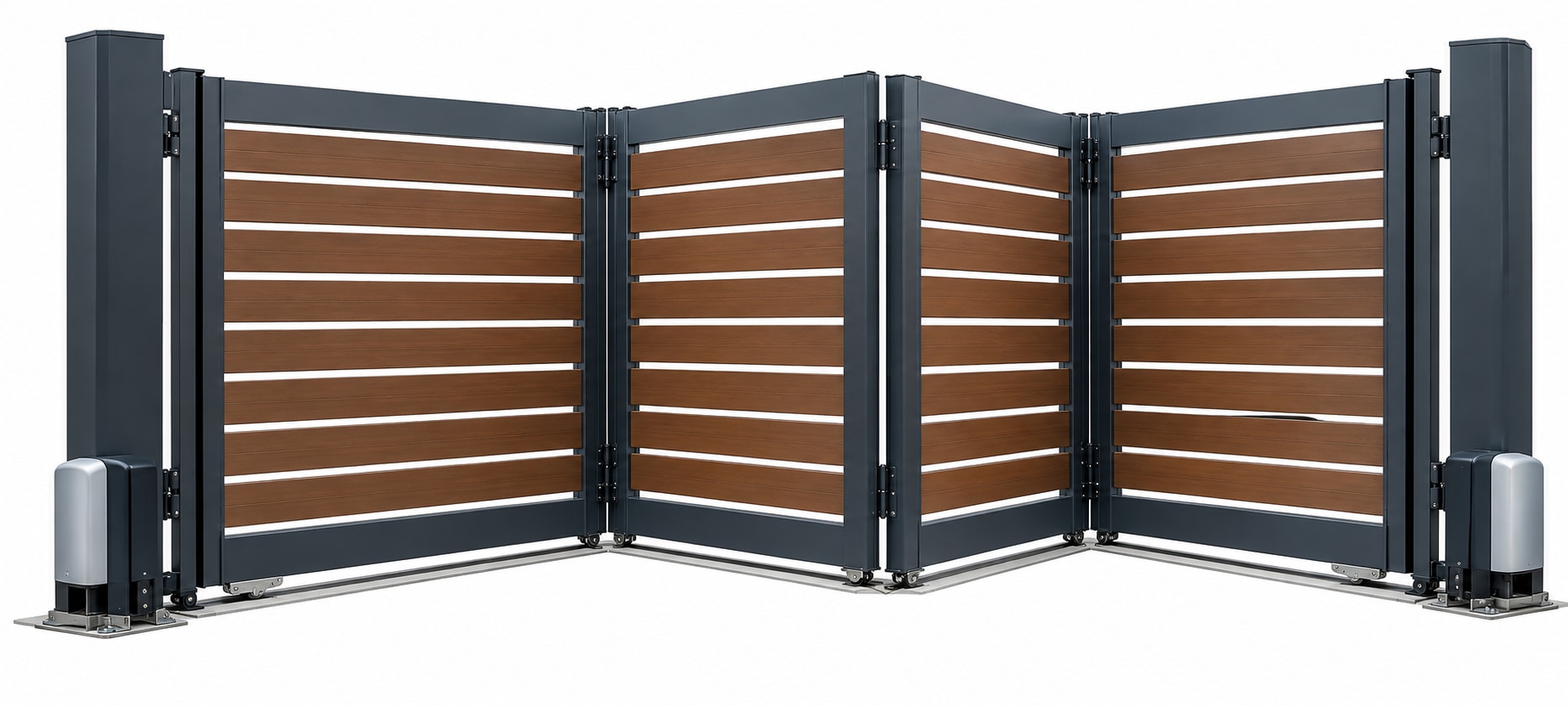

The defining feature is a chain of leaves joined by hinges or articulated joints. As the operator pulls the leading leaf, the linked leaves fold into a concertina while the complete assembly travels sideways along a guide, so the motor must coordinate folding and lateral movement.
| Gate type | Physical arrangement | Parking requirement |
|---|---|---|
| Sliding folding gate | Hinged leaves carried by rollers or guides and driven as a linked assembly | A compact folded envelope beside the opening |
| Standard tracked or cantilever gate | One rigid leaf travels sideways without folding | A runback roughly matching the gate leaf or counterbalance |
| Telescopic sliding gate | Two or more rigid leaves overlap and separate during travel | A shorter runback, but multiple carriers and guides |
An automatic sliding folding gate is not specified correctly by opening width alone. The order drawing must show the mechanical arrangement in plan and elevation, including:
- Number of leaves and each leaf’s width, height and estimated mass
- Hinge or articulated-joint positions, leaf folding sequence and leading leaf
- Bottom track or guide-channel layout, roller or carrier locations and support points
- Travel direction, clear opening and the exact folded parking envelope
- Finished-floor level, slope, wall clearance and any pedestrian or vehicle route affected by parked leaves
- Motor position, drive connection, manual-release access and the location of end stops
Without these details, a quoted gate can fit the nominal opening yet block a wall, vehicle bay or walkway when fully folded. The operator rating must match total moving mass, leaf geometry, duty cycle and travel speed, not width alone.
What the Nagpur site survey must measure
A nominal opening width is not enough. For a motorized sliding folding gate in Nagpur, measure the clear opening between finished obstructions, the full gate height, and the side-stack length available along the boundary. The folded leaves must park without striking a wall, parked vehicle, signboard, or pedestrian route.
Record these site facts before selecting the operator:
- Leaf count, individual leaf width, hinge positions, total gate mass, and each leaf’s centre of gravity.
- Finished-floor levels, crossfall, road gradient, drainage, and any step between the gate and driveway.
- Track condition, wheel support, guide alignment, nearby paving, and clearance beneath and beside the leaves.
- Vehicle turning path, mirror clearance, queue space, and the location of a motor enclosure that remains accessible but protected.
- Incoming electrical supply, cable route, control-panel position, earthing point, and distance to photocells, loops, keypads, or other controls.
- Wind exposure, dust, monsoon water, daily openings, peak traffic, and the required travel speed.
| Measured condition | Fit implication | Failure if missed |
|---|---|---|
| Clear opening and side stack | Confirms passage and folded parking envelope | Leaves block traffic or cannot open fully |
| Mass, leaf geometry and slope | Determines operator torque, wheels and braking | Motor stalls, rolls downhill, or overheats |
| Track, floor and drainage | Shows whether civil repair and water control are needed | Binding, corrosion and unsafe movement |
| Power and equipment positions | Defines cabling, enclosure and safety-device coverage | Exposed wiring or incomplete installation |
How the quotation becomes a built and powered gate
Compare the complete installed system, not the motor’s horsepower or the gate’s decorative finish. The quotation should identify the following items separately:
| Item | What to compare | Why it matters |
|---|---|---|
| Gate structure | Leaf count, steel or aluminium grade, hinges, rollers, finish and rated mass | Hidden weight increases drive load and wear |
| Civil work | Foundation size, reinforcement, track, drainage and anchor bolts | Exclusions can leave you with an unusable, uneven base |
| Automation | Operator rating, duty cycle, travel speed, control panel and manual release | Sliding folding gate automation depends on mass, leaf geometry and operating frequency |
| Safety and electrical work | Photo beams, safety edges, emergency stop, cabling and isolators | A remote control alone does not protect people or vehicles |
| After-sales terms | Commissioning, training, warranty exclusions and service response time | The cheapest quote can cost more during a breakdown |
The build then follows an ordered sequence:
- Fabricators cut and weld the leaves, fit folding hinges, rollers and guides, and check that the linked assembly folds without binding. The approved drawing must match the manufactured leaf dimensions and parking direction.
- Civil workers form a level, adequately reinforced foundation, install the guide track and anchor points, and provide drainage. A settlement or raised track makes the leaves drag and overloads the operator.
- Installers hang and align the leaves, set clearances, secure the guides, and route protected cables to the control panel.
- The technician programs opening and closing limits, selects force and speed settings for the rated gate mass, tests the drive under load, and confirms manual release operation before handover.
How controls, safety devices and commissioning work
A remote control opens the gate; it does not make the movement safe. Authorization controls such as a radio remote, keypad, card reader, GSM controller or ANPR system decide who may command an automatic sliding folding gate.
| Authorization control | Function | Failure it does not prevent |
|---|---|---|
| Radio remote, keypad or card reader | Permits an opening or closing command | A vehicle or person being struck |
| GSM controller or ANPR system | Identifies a caller, phone or vehicle | An obstacle entering the travel path |
| Photo-eye, safety edge or induction loop | Detects a person, vehicle or obstruction | An unauthorised opening command |
| Emergency stop or manual release | Stops movement or permits escape operation | Access control or identity verification |
The safety circuit must be wired and tested independently of access permission. It can include monitored photoelectric beams, pressure-sensitive edges, controlled stop and reverse logic, an emergency stop and a manual release. The exact arrangement follows the risk assessment and applicable gate-safety standard; adding a reader without obstacle detection leaves the system incomplete.
Commissioning begins with the structure, not the motor. The installer must correct binding hinges, tight guides, damaged tracks, poor clearances or downhill movement before setting travel limits and force levels. Sliding folding gate automation cannot compensate for a gate that rolls or drags.
Complete and record these tests before handover:
- Open and close cycles at normal speed, including full folding and parking clearance.
- Photo-eye interruption and safety-edge contact during opening and closing.
- Obstruction response: stop, reverse or controlled stop as specified.
- Emergency-stop operation and restart behaviour after reset.
- Manual-release operation during power failure.
- Each remote, keypad, card, GSM or ANPR permission and its denied-access response.
- Mains isolation, backup supply if fitted, cable protection and panel indications.
- Repeated cycles after adjustment, with the final settings documented and operators trained.
How to operate, maintain and assess the installed system
Do not accept handover until the gate opens, closes, stops and reverses under test, and you have the records to prove it. Nagpur Automation, phone 08048400505, or any motorized folding gate supplier in Nagpur, should provide:
- The approved drawing showing leaf count, hinge positions, folded parking envelope and clear opening.
- The operator model, rated gate mass, duty cycle, speed, control-panel diagram and electrical load.
- Safety-device test results, emergency-release instructions, warranty exclusions, service response time and spare-parts terms.
- Foundation, track, drainage and cable-route details, plus operating and maintenance training.
Keep the track free of grit, leaves and standing monsoon water. Inspect it weekly during dusty periods; use a brush or vacuum rather than forcing debris into the wheels. Wipe exposed metal, check drainage after heavy rain, and look for rust at hinges, fasteners and welded joints.
Every month, inspect hinge play, wheel and guide wear, loose fasteners, cable glands, sensor alignment and emergency release. Test the safety-stop and reverse function at low risk, then record the result. Do not spread grease on an exposed dusty track; lubricate only specified hinge or bearing points.
Folding is the wrong choice when there is no safe side-stack envelope, the road slope loads the leaves, wind exposure or leaf weight exceeds the operator rating, or traffic demands a high duty cycle.
Compare a cantilever, tracked or telescopic gate instead; a motorized sliding folding gate in Nagpur is not selected by opening width alone.
