A hospital gate needs more than a motor that moves a heavy leaf: the site must drain correctly, protect pedestrians, preserve ambulance access and remain operable during a power failure. By the end, you will know how to inspect an existing gate, compare concealed and surface-mounted mechanisms, define safety requirements and evaluate a supplier’s quotation.
Key takeaways
- Survey the gate leaf, foundation, drainage and vehicle path before choosing an operator.
- Match motor capacity to leaf dimensions, hinge movement and daily opening cycles.
- Specify photocells, safety edges, emergency release and pedestrian separation.
- Compare suppliers using commissioning records, wiring diagrams and maintenance response terms.
Start with the gate, ground and vehicle path

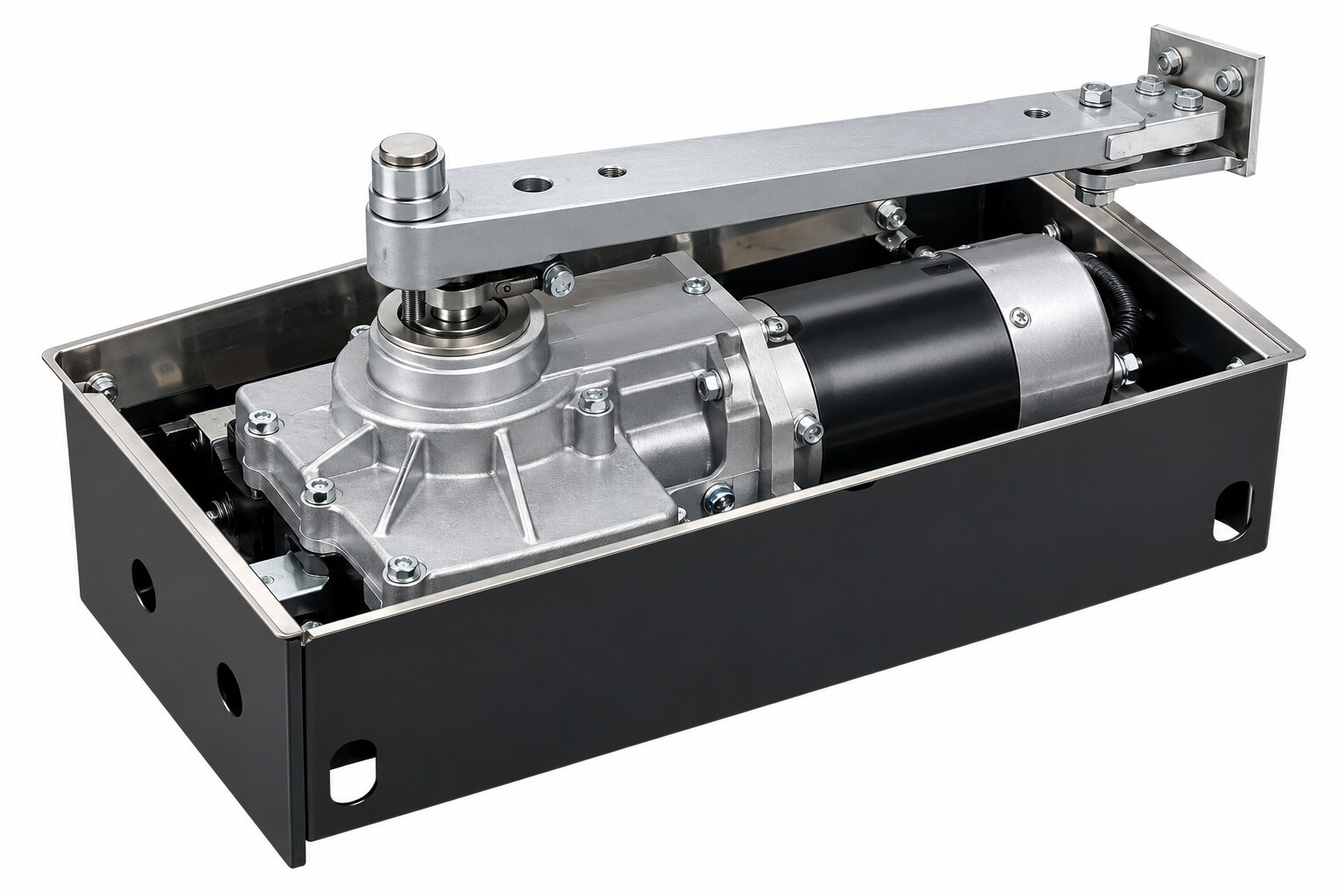

A concealed operator is suitable only after the survey proves that the gate, foundation and vehicle route can accept it. An underground unit needs a correctly sized foundation box, positive drainage, cable glands and a serviceable drain path.
A water-collecting pit will damage the mechanism after monsoon rain; an IP rating does not correct poor civil work.
- Measure each leaf’s width, height, weight, opening angle and ground clearance. Record whether it is solid or open grille, because wind loading can make a lighter solid leaf harder to drive than a heavier grille.
- Check hinge condition, hinge friction, leaf alignment, frame rigidity and the physical end stops. Repair sagging hinges or a flexible frame before automation; the motor cannot compensate for binding steel.
- Trace underground water, electrical and communication services before excavation. Confirm the foundation level, soil stability, drainage outlet, earthing, conduit routes and access for removing the motor without dismantling the gate.
- Draw the complete vehicle path, including turning radius, queue space, driveway slope, boundary-wall clearance and nearby pedestrian movement. Confirm that an opening leaf cannot strike an ambulance, parked vehicle, wall or person.
- Specify repeated hospital operation, partial openings and duty cycle in writing. Search terms such as automatic concealed swing gate for motor in Nagpur, concealed swing gate motor in Nagpur and swing gate automation in Nagpur identify suppliers, not suitability; require these measurements in the quotation.
Match the operator to leaf size, movement and workload
A leaf that fits the operator’s weight limit can still overload it. Select the drive after checking leaf length, width, centre of gravity, hinge friction, opening angle, wind exposure and whether the infill is solid or open grille. A long solid leaf creates more resistance than a shorter grille leaf of the same weight.
| Gate arrangement | Operator requirement | Check before approval |
|---|---|---|
| Single leaf | One correctly rated underground operator, with mechanical open and closed stops | Maximum leaf size, weight, angle, cycle rate and full travel |
| Two leaves | One operator per leaf, plus a controller that sequences movement and prevents collision | Leaf order, overlap, centre stop, closing delay and synchronisation |
For a hospital entrance, ask for the declared duty class or cycles per hour, not “heavy duty.” Repeated short openings, vehicle queues and partial movements can overheat an operator designed for occasional residential use. The quotation should also state recommended daily operations and the recovery procedure if one leaf stops.
- Reject the selection if the leaves have no positive mechanical stops at fully open and fully closed positions; internal limit detection alone can drift after hinge movement or a control fault.
- Confirm the two-leaf system can open one leaf for controlled service access without forcing the other leaf to move.
- Require manual release access that works without an energized controller.
Search labels such as concealed swing gate motor in Nagpur or motorized swing gate in Nagpur identify procurement categories, not capacity. Compare the manufacturer’s leaf limits, duty rating and safety documentation before choosing swing gate automation.
Build pedestrian protection into the gate design
Keep pedestrians outside the powered vehicle leaf. Mark a separate, kerb-protected walkway with its own pedestrian door; neither a swing gate opener nor a boom barrier is a safe substitute. This separation matters most beside emergency departments, where people move unpredictably around ambulances.
Specify these protection points in the drawing:
- Place photocells across the gate opening on both approach sides, before the leaf reaches a person, vehicle or wall. Add detection through the full sweep, not only at bumper height.
- Fit pressure-sensitive safety edges to the leading closing edges and protect the hinge-side crush zones, the space between two leaves and the wall-side shear points.
- Install a presence sensor covering the pedestrian approach and the area where someone could stand beside the moving leaf. A vehicle loop confirms a vehicle; it does not detect every pedestrian.
- Put warning lights and an audible alarm where drivers and walkers can see or hear them, and keep the manual release reachable with the gate closed.
Compare the devices by the hazard they cover:
| Device | Position | What it prevents |
|---|---|---|
| Photocells | Across entry and exit lines | Closing on a person or vehicle |
| Safety edges | Leaf edges, meeting point and wall-side pinch zones | Crush and shear injuries |
| Presence sensor | Pedestrian approach and swing arc | Movement into the gate path |
| Vehicle loop | Before and inside the gate | A vehicle command without replacing safety detection |
Require force measurement at crush, shear and impact points with a calibrated instrument during commissioning. For swing gate automation in Nagpur, card readers, RFID, intercoms and fire-alarm signals must request opening without bypassing sensors, force limits or emergency release.
Plan emergency opening, backup power and control signals
A hospital gate needs a tested way to open when mains power, the controller or the fire-alarm system fails. The manual release must remain reachable with the gate closed and operate without an energised controller; keep its key or tool in a marked security cabinet, with a second controlled copy for emergency responders.
Test these failure responses during commissioning:
- Mains failure: confirm the battery or generator keeps the leaf moving, not merely the controller display. Record the required open-close cycles, generator-transfer behaviour, recharge time and the action after battery exhaustion.
- Controller failure: isolate the operator and use the mechanical release, then move the leaf safely by hand without entering the vehicle path.
- Fire-alarm operation: define whether the gate opens, stays open or releases in another approved position. A fire signal must not bypass photocells, safety edges, force limitation or manual-release protection.
Treat every command as a request, not a safety override. A card reader, intercom, vehicle loop, RFID reader, remote-release button or fire-alarm signal must pass through the same safety chain. Document who can reset the gate and how security confirms it is safe before restoring automatic operation.
Ask any swing gate opener in Nagpur supplier to demonstrate each test with the gate loaded and the emergency route clear. A UPS that powers electronics but cannot move the leaf is not a continuity plan.
Compare suppliers through commissioning and maintenance evidence
A credible supplier proves performance on paper and on site, not by demonstrating a remote control. Request these quotation items:
- A written site survey covering underground services, drainage level, hinge alignment, cable routes, earthing, maintenance access and emergency access.
- The electromechanical or hydraulic operator’s leaf limits, opening angle, duty class or cycles per hour, recommended daily operations, mechanical-stop requirement and warranty.
- Controller functions: adjustable speed, soft start and stop, obstacle reversal, separate pedestrian opening and a safety-neutral interface for loops, RFID, intercom and fire-alarm signals.
- A named split of responsibility for excavation, foundation boxes, drainage, conduits, gate repairs and electrical supply.
Compare the supplier’s evidence at each stage:
| Document | Require | Reject if |
|---|---|---|
| Quotation | Model data, civil-work drawings and duty rating | “Heavy duty” appears without cycles per hour |
| Acceptance record | Calibrated force measurements at crush, shear and impact points; tests of photocells, edges, reversal and manual release | A blocked photocell demonstration replaces force testing |
| Maintenance plan | Inspection intervals based on cycles, drainage checks, lubrication, safety-device tests, release checks, fault logs and spare-part support | It only promises periodic servicing |
Test mains failure, controller failure and fire-alarm operation separately. The manual release must work without an energised controller and remain reachable with the gate closed.
Nagpur Automation (08048400505) should be compared on these documents and witnessed tests, rather than on motor wattage or a “best supplier” claim. Keep signed commissioning results with the gate’s maintenance log.
Related products
 | Automatic Motorized Swing Gate Our company has emerged as one of the top most positions in the industry for offering a wide range of Automatic Motorized Swing Gate. View product → |
 | MOTORIZED SWING GATE AUTOMATIC CONCEAL SWING GATE MOTOR AUTOMATIC CONCEAL SWING GATE MOTOR View product → |
Frequently asked questions
What must you check before installing a concealed swing gate motor?
Check the gate leaf, hinges, foundation depth, drainage, cable route and vehicle path. The foundation box needs positive drainage and a serviceable drain path.
How do you match a swing gate opener to hospital use?
Compare leaf width, weight, wind exposure, opening angle, hinge condition and expected daily cycles. Select an operator rated for that combined workload rather than weight alone.
How can a motorized swing gate protect pedestrians?
Separate pedestrian and vehicle routes, control the opening zone with photocells, and specify safety edges, warning signals and a hold-open or slow-speed strategy where the layout requires it.
What emergency and backup features should the gate include?
Provide a manual emergency release, documented access for responders, battery backup sized for the required cycles, and tested fire-alarm or access-control signals.
How should you compare concealed swing gate motor suppliers in Nagpur?
Request a site survey, load and cycle calculation, wiring diagram, commissioning report, emergency-release demonstration, maintenance schedule and clear response terms.
