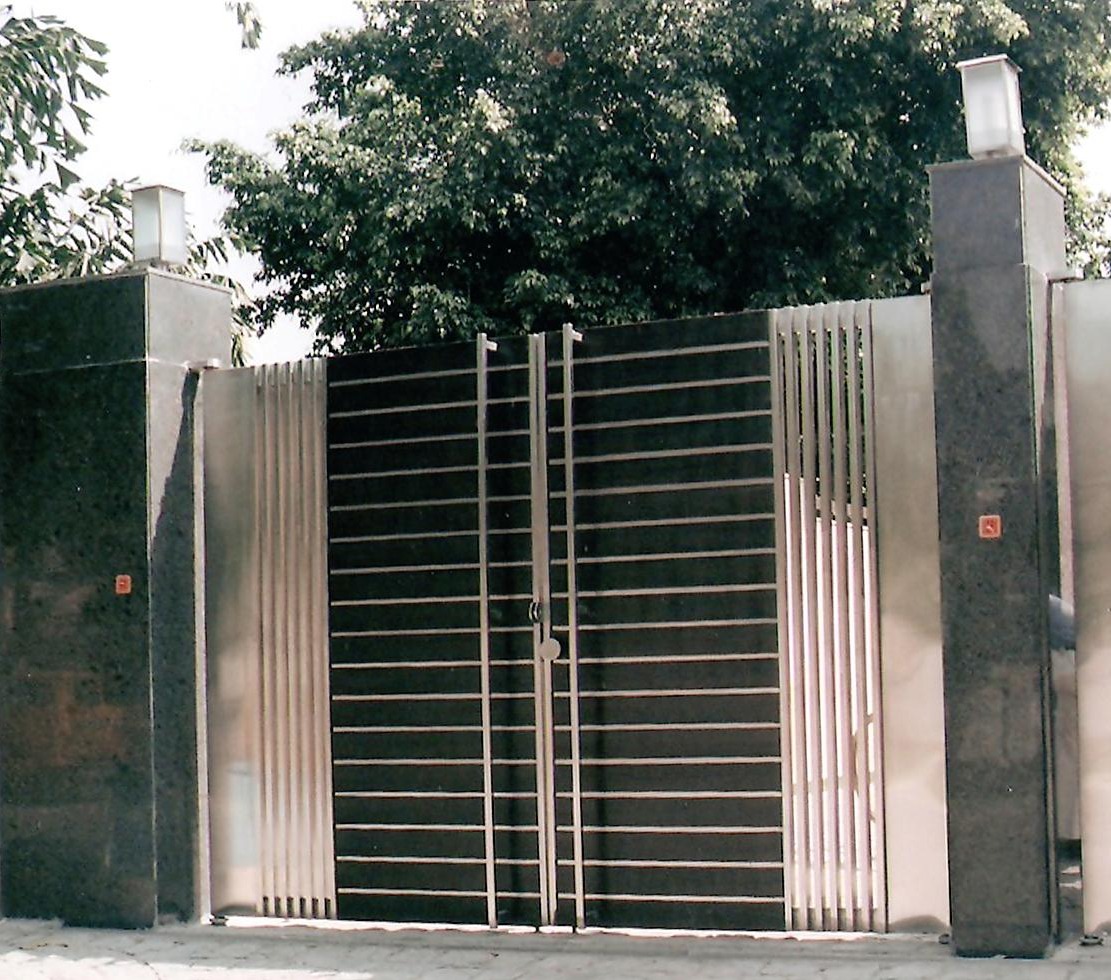

A Motorized Swing Gate combines the familiar operation of a conventional hinged gate with an automated opening and closing mechanism. Instead of someone manually moving the gate leaves, electric operators control their movement after receiving an authorised command.
For homes, offices, institutional premises, and selected commercial properties in Nagpur, Maharashtra, swing gate automation can be a practical option when sufficient opening space is available.
How motorized swing gates operate
A swing gate normally consists of one or two hinged leaves. Automation operators are attached to these leaves and move them inward or outward, depending on the installation design and available space.
The gate can be activated through systems such as remote transmitters, access-control devices, push buttons, or compatible smart controls.
The automation equipment needs to work with the physical gate rather than compensate for mechanical problems. Hinges, posts, gate alignment, and structural strength should therefore be checked before motorization.
When does a swing gate make sense?
Swing gates are worth considering when:
- The entrance has adequate opening clearance
- The gate leaves are structurally suitable for automation
- Sideways space for a sliding gate is unavailable
- The property already has a functional hinged gate
- Controlled vehicle entry is required
The opening area should remain free from parked vehicles and other obstructions. This is particularly important because the leaves need a defined arc in which to move.
Single-leaf and double-leaf configurations
Not every entrance requires the same configuration.
A single-leaf system uses one gate panel across the opening. A double-leaf gate divides the entrance between two hinged panels. The right arrangement depends on entrance dimensions, gate weight, structural design, wind exposure, and available movement area.
Automation operators should then be selected according to these physical conditions and the expected number of operating cycles.
Safety needs attention too
Automatic movement introduces additional safety considerations. Sensors and properly configured controls can help reduce the risk of a gate closing when a vehicle or obstacle is within the movement zone.
Manual release is another useful provision. During a power failure or equipment issue, it allows the gate to be disengaged from the operator and moved manually where the system design permits.
Regular maintenance is equally important. Hinges, mounting points, electrical connections, operators, sensors, and control devices should remain in good condition.
Nagpur Automation provides gate automation solutions for different property requirements in Nagpur. A site evaluation can establish whether swing operation is appropriate before deciding on operator capacity and control features.
A Motorized Swing Gate works best when the entrance naturally supports hinged movement. Choosing it because it suits the site—not simply because it is automated—helps create a more practical access system for long-term use.
